 Brush Wire |
| Brush Wire Product Line: Brass wire, Stainless Steel wire, Phosphorus Bronze wire, Nickel Silver wire, Galvanized wire, High/Low Carbon wire and Stapling wire. |
| Crimped or Straight wire in hanks, in cut form, wire on spools, wire in a coil are available. OEM is welcome. |
| |
 |
| It is available for individual convenience in producing gear/pin crimped wire. |

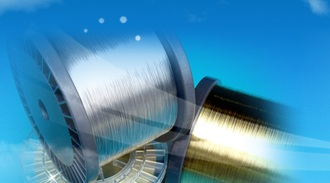

Wire on spools
DIN 125 to DIN 250
Dia.¡G0.06 ¡V 0.50 mm |
|
|
 |
 |
| It is available to adjust to individual packaging machinery types. Your other specific drawing packaging is available on request. |
Wire in a coil
(¡í 500 ¡V 3000 mm)
Dia.¡G0.06 ¡V 0.50 mm
|
|
|
|
 |
| High quality, consistent crimp enables easy picking for automatic brush making machinery. Wire can be produced in different forms to suit individual requirements. Yo Yuen Metal Wire can offer straight wire for brush fill. |
Wire in cut form
Dia.¡G0.06 ¡V 0.50 mm |
|
|
|
|
| |
|
|
 EDM Wire |
| Yo Yuen EDM wire are produced under a Strict Quality Controlled environment and conditions established by all kinds of wire EDM machinery electric and therefore are assured of high dimensional precision, stable mechanical performance, impurity free materials, clean and smooth surface quality, perfect straightness without any curl and twists and built-in capability to achieve high cutting speed. Applicable wire EDM machinery are: |
| CHARMILLES, AGIE, MITSUBISHI, SODICK, FANUC ¡K etc. |
| |
 |
EDM wire characteristics¡G
Smooth Surface Quality
Standard Weight Control
No Weldment ¡V Vertical Straightness
High-Dimensional Precision |
|
|
| ¡EMaterial of Components |
| Brass Wire |
CuZn 35, CuZn 37, CuZn 40 |
| Coating Wire |
CuZn 35 Zinc Coated |
|
|
| |
| ¡ESpecification |
| Wire Grade |
Diameter |
Diameter
Tolerance
mm |
Tensile
Strength
(N/mm²) |
| mm |
inch |
| Hard |
0.15 |
0.006 |
+/- 0.001 |
¡Ù 900 |
| 0.20 |
0.008 |
| 0.25 |
0.010 |
| 0.30 |
0.012 |
| Semi-Hard |
0.20 |
0.008 |
¡Ù 500 |
| 0.25 |
0.010 |
| 0.30 |
0.012 |
| Soft |
0.20 |
0.008 |
¡Ù 400 |
| 0.25 |
0.010 |
| 0.30 |
0.012 |
|
|
| |
| ¡EPackaging |
| Spool |
Weight |
Spools/Box |
| Kg |
Lbs |
| P-3 |
3.0 |
6.6 |
6 |
| P-5 |
5.0 |
11.0 |
4 |
| P-10 |
10.0 |
22.0 |
2 |
| P-15 |
20.0 |
44.0 |
1 |
| DIN125 |
3.5 |
7.7 |
6 |
| DIN160 |
7.5 |
16.5 |
2 |
| DIN200 |
15.0 |
33.0 |
1 |
| DIN250 |
23.0 |
50.6 |
1 |
|
|
| |
| Special request on specification is welcome and available. |
|
|
|
|
 |
|
|
